Stainless Steel Honeycomb Panel Long-lasting And Low Maintenance
Key Advantages of Stainless Steel Honeycomb Panel
- Lightweight strength, premium metal aesthetics.
- Durable stainless steel finish, ultimate flatness & stability.
- Corrosion-resistant, fireproof and long-lasting for premium architecture.
- Redefine modern metal facade & interior decoration.
- Engineered for perfection, built for permanence.
Applications
· Luxury hotel lobbies and interior walls
· Commercial building wall cladding
· Elevator cabin panels
· Airports and metro stations
· High-end office interiors
· Retail stores and flagship showrooms
· Architectural façade systems
Specification
|
Panel thickness
|
10mm, 18mm, 25mm, 50mm or customized panel thickness
|
|
Panel width
|
1000mm, 1200mm or customized panel width
|
|
Panel length
|
2440mm, 3000mm, 4000mm, 5800mm or customized length
|
|
Stainless steel skin thickness
|
0.5mm, 0.7mm, 0.8mm, 1mm (or as required)
|
|
Stainless steel grade
|
201, 304, or as required
|
|

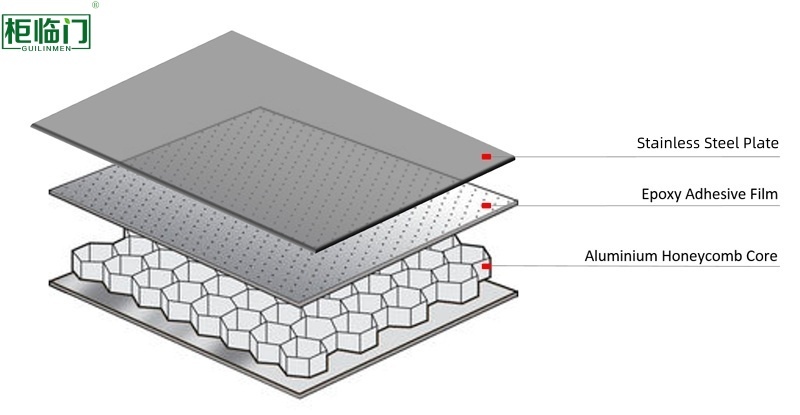

Honeycomb core
|
Aluminium honeycomb A6*0.05 (or as required)
|
|
Stainless steel patterns
|
8K Mirror, hairline, various types of embossed surfaces
|
|
Colors
|
Original stainless steel color, various types of PVD colors (Physical vapor deposition technology)
|
|
Shape
|
Flat panel, curved panel, customized
|
|
Panel edge
|
Closed edge, customized edges embedded with aluminium extrusions
|
|
Fabrication
|
Fabrication or cutting service as per drawing upon request
|
Overview of Our Factory
FAQ
1. Are Stainless Steel Honeycomb Panels suitable for coastal and humid environments?
Yes. With the appropriate stainless steel grade and surface treatment, the panels can be used in humid, coastal and other demanding environments. For projects exposed to salt spray or aggressive conditions, we recommend selecting the stainless steel grade based on the actual environment.
2. What surface finishes are available?
We offer a wide range of premium stainless steel finishes, including Brushed, Hairline, Mirror, 8K, Satin, PVD, Etched and Embossed finishes. Customized colors, textures and surface treatments are also available for specific projects and brands.
3. How does the honeycomb structure reduce weight while maintaining strength?
The honeycomb core creates a lightweight structural sandwich while maintaining high rigidity. Compared with solid stainless steel panels of similar overall dimensions, the honeycomb construction can significantly reduce panel weight and help lower transportation, handling and installation costs.
4. Can Stainless Steel Honeycomb Panels be used for exterior applications?
Yes. They can be designed for various indoor and outdoor applications, including building facades, commercial buildings, hotels, airports, transportation facilities and other architectural projects. The panel structure, stainless steel grade and surface treatment should be selected according to the specific application and environmental conditions.
5. Do you provide OEM and ODM services?
Yes. As an R&D and manufacturing company, we provide OEM and ODM services including customized panel sizes, thicknesses, stainless steel grades, honeycomb structures, surface finishes, colors, logos and packaging. We can also develop customized solutions for specific projects and markets.
